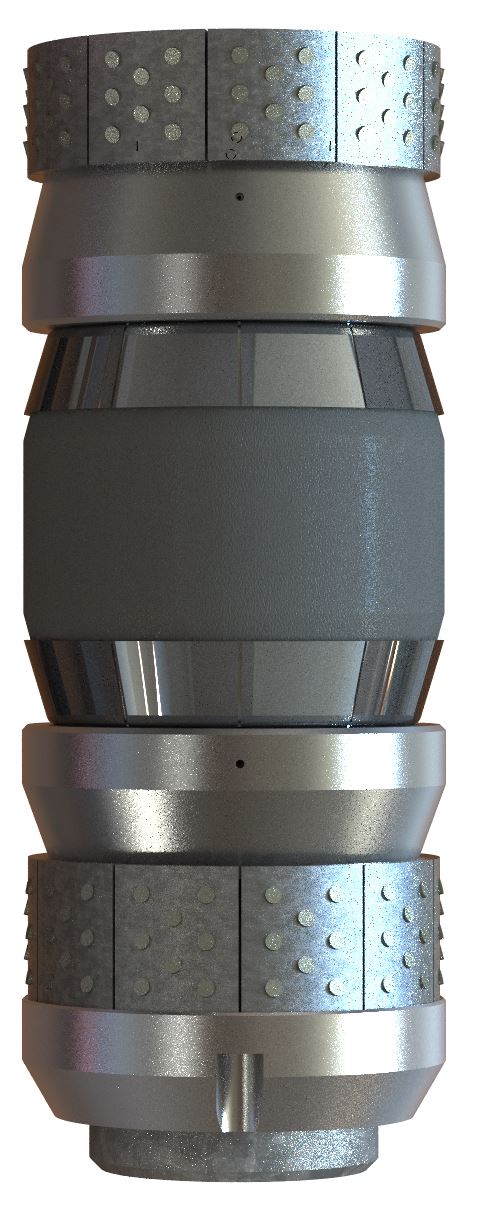

BRIDGE PLUGS
The ACT Bridge Plug is a high-pressure plug constructed of drillable cast-iron that uses Alpha Big Boy setting sleeves and adapter rods. Bridge plugs, It can be set on any GO or Baker-type wireline pressure setting tool or pipe/coil tubing with an ACT Hydraulic Setting Tool. When set, opposing slips are located above and below the rubber packing elements. The packing elements are contained by rocker action back-up rings that eliminate extrusion of the elements at high temperatures and pressures.
The ACT Model BKR Premium Bridge Plug is a high pressure plug constructed of drillable cast-iron that uses Bolt, Elder or Baker K- 1 type setting sleeves, no tension mandrel is required. It can be set on any Baker type wireline pressure setting tool or pipe/coil tubing with an ACT Hydraulic Setting Tool. When set, opposing slips are located above and below the rubber packing elements. The packing elements are contained by rocker action back-up rings that eliminate extrusion of the elements at high temperatures and pressures. A one way ratchet lock ring retains the setting force applied to the opposing slips and rubber to maintain a pressure tight seal.

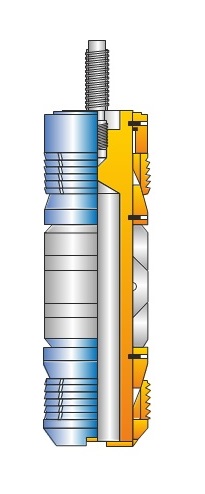

ACT MODEL A PREMIUM BRIDGE PLUG – WIRELINE SET / DRILLABLE
The ACT Model A Premium Bridge Plug
is a high pressure plug constructed
of drillable cast-iron that uses
Alpha Big Boy setting sleeves and
adapter rods. It can be set on any
GO or Baker type wireline pressure
setting tool or pipe/coil tubing
with an ACT Hydraulic Setting Tool.
When set, opposing slips are located
above and below the rubber packing
elements. The packing elements are
contained by rocker action back-up
rings that eliminate extrusion of
the elements at high temperatures
and pressures.A one way ratchet lock
ring retains the setting force
applied to the opposing slips and
rubber to maintain a pressure tight
seal.
One-piece slips keep the plug
securely set in premium grade
casings including P-110. The slip
wickers are sharp and hardened to
the wicker depth only allowing the
slip to grip the casing wall while
maintaining a soft cast-iron inside
for easier drilling. The upper slips
remain in the set position during
the drilling operation to allow gas
pressure to equalize. This plug is
ideal for zone isolation where
squeeze cementing, fracturing or
plug abandonment operations are
being performed. Optional packing
systems of Viton or Aflas are
available on special order. Special
application tools can be custom
designed to fit your specific needs.
ACT MODEL A LITE BRIDGE PLUG – WIRELINE SET / DRILLABLE
The ACT Model A Lite Bridge Plug is
a medium pressure plug constructed
of drillable cast-iron that uses
Alpha Big Boy setting sleeves and
adapter rods. It can be set on any
GO or Baker type wireline pressure
setting tool or pipe/coil tubing
with an ACT Hydraulic Setting Tool.
When set, opposing slips are located
above and below the rubber packing
elements. A one way ratchet lock
ring retains the setting force
applied to the opposing slips and
rubber to maintain a pressure tight
seal. One-piece slips keep the plug
securely set in premium grade
casings including P-110. The slip
wickers are sharp and hardened to
the wicker depth only allowing the
slip to grip the casing wall while
maintaining a soft cast-iron inside
for easier drilling.
The upper slips remain in the set
position during the drilling
operation to allow gas pressure to
equalize. This plug is ideal for
zone isolation where squeeze
cementing, fracturing or plug
abandonment operations are being
performed. It is also good in
horizontal applications because
there are no back-up rings. Optional
packing systems of Viton or Aflas
are available on special order.
Special application tools can be
custom designed to fit your specific
needs.
FEATURES:
- Drillable cast iron construction
- Uses Alpha Big Boy Setting
- Sleeves and Adapter Rods
- Wireline set on GO or
- Baker Wireline Pressure
- Setting Tool Hydraulic set on ACT Hydraulic Setting Tool
- Small OD’s for extra clearance in heavy viscous fluids
- One-piece slips set in premium grade casings including P-110 Multi
-
Durometer packing system
Plug remains set until gas pressure equalizes during drill out For temporary or permanent service

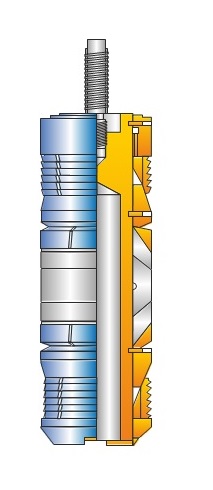

MODEL BKR PREMIUM BRIDGE PLUG – WIRELINE SET / DRILLABLE
The ACT Model BKR Premium Bridge
Plug is a high pressure plug
constructed of drillable cast-iron
that uses Bolt, Elder or Baker K- 1
type setting sleeves, no tension
mandrel is required. It can be set
on any Baker type wireline pressure
setting tool or pipe/coil tubing
with an ACT Hydraulic Setting Tool.
When set, opposing slips are located
above and below the rubber packing
elements. The packing elements are
contained by rocker action back-up
rings that eliminate extrusion of
the elements at high temperatures
and pressures. A one way ratchet
lock ring retains the setting force
applied to the opposing slips and
rubber to maintain a pressure tight
seal.
One piece slips keep the plug
securely set in premium grade
casings including P-110. The slip
wickers are sharp and hardened to
the wicker depth only allowing the
slip to grip the casing wall while
maintaining a soft cast-iron inside
for easier drilling. This plug is
ideal for zone isolation where
squeeze cementing, fracturing or
plug abandonment operations are
being performed. Optional packing
systems of Viton or Aflas are
available on special order. This
plug will not vent gas pressure
prior to plug moving unless
provisions are made. Special
application tools can be custom
designed to fit your specific needs.
FEATURES:
- Drillable cast iron construction
- Uses Bolt, Elder or Baker K-1 Setting Sleeves
- Wireline set on Baker Type
- Wireline Pressure Setting
- Tool Hydraulic set on ACT Hydraulic Setting Tool
- Small OD’s for extra clearance in heavy viscous fluids
- One-piece slips set in premium grade casings including P-110 Rocker action back-up prevent rubber extrusion For temporary or permanent service
MODEL BKR LITE BRIDGE PLUG – WIRELINE SET / DRILLABLE
The ACT Model BKR Lite Bridge Plug
is a medium pressure plug
constructed of drillable cast-iron
that uses Bolt, Elder or Baker K-1
type setting sleeves, no tension
mandrel is required. It can be set
on any Baker type wireline pressure
setting tool or pipe/coil tubing
with an ACT Hydraulic Setting Tool.
When set, opposing slips are located
above and below the rubber packing
elements. A one way ratchet lock
ring retains the setting force
applied to the opposing slips and
rubber to maintain a pressure tight
seal. One-piece slips keep the plug
securely set in premium grade
casings including P-110.
The slip wickers are sharp and
hardened to the wicker depth only
allowing the slip to grip the casing
wall while maintaining a soft
cast-iron inside for easier
drilling. The upper slips remain in
the set position during the drilling
operation to allow gas pressure to
equalize. This plug is ideal for
zone isolation where squeeze
cementing, fracturing or plug
abandonment operations are being
performed. It is also good in
horizontal applications because
there are no back-up rings. Optional
packing systems of Viton or Aflas
are available on special order. This
plug will not vent gas pressure
prior to plug moving unless
provisions are made. Special
application tools can be custom
designed to fit your specific needs.
Drillable cast iron construction
FEATURES:
- Uses Bolt, Elder or Baker
- K-1 Setting Sleeves
- Wireline set on Baker Type
- Wireline Pressure Setting
- Tool Hydraulic set on ACT
- Hydraulic Setting Tool
- Small OD’s for extra clearance in heavy viscous fluids
- One-piece slips set in premium grade casings including P-110
-
Multi-Durometer packing system
For temporary or permanent service

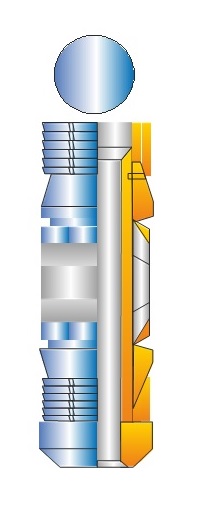

FRAC PLUGS WIRELINE SET – STANDARD FRAC PLUG
The Standard Frac Plug provides an
economical means of temporary zone
isolation for fracturing or other
treatments. The plug can be set on
different types of wireline pressure
setting tools.
The Standard Frac Plug is supplied
with a shear ring to give an
accurate and secure set. Also
supplied is a ball that will seat on
the top of Frac Plug during a
fracturing operation. This plug
sustains moderate pressures and
temperatures.
FEATURES:
- Electric wireline set
- Drillable Cast iron construction
- One piece slips – hardened to depth of wicker only Sets in any grade casing including P-110 Bottom set with shear ring
- For temporary or permanent service
- Ratcheting lock ring holds setting force
- Small O.D.’s for speed and safety when running
FRAC PLUGS WIRELINE SET – BIG BORE FRAC PLUG
The Big Bore Frac Plug is designed for frac jobs in which a large hole through the plug is required. The plug is supplied with a shear ring to give an accurate and secure set. Also supplied is a ball that will seat on the top of Frac Plug during a fracturing operation. This plug sustains moderate pressures and temperatures.
FEATURES:
- Electric wireline set
- Drillable One piece slips – hardened to depth of wicker only Sets in any grade casing including P-110
- Top set with shear ring For temporary or permanent service
- Ratcheting lock ring holds setting force

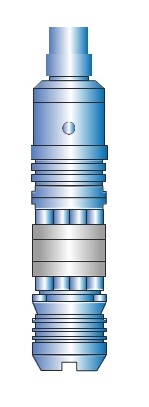

MODEL PREMIUM & LITE HM BRIDGE PLUG – TUBING SET
The Model HM Bridge Plug is set using hydraulic power to set the top slips and then mechanical pull to complete the set. The Premium is for high pressure and temperature while the Lite sustains moderate temperature and pressure.
The need for a mechanical setting tool does not exist because the setting mechanism is built-in. A ball is placed in the tubing string plugging off the built-in equalizing ports. Pressure is then applied to set the top slip and then mechanical pull is applied to finish the set. Releasing the tubing string from the plug is done by simply turning to the right.
Full tubing I.D. is available after releasing from the plug allowing other equipment to extend through the end of the tubing string.
FEATURES:
- Drillable Cast iron construction One piece slip Sets in any grade casing including P-110
- Metal back-up to prevent rubber extrusion For temporary or permanent service Ratcheting lock ring holds setting force
- Excellent for deviated wells
